HSI-SAPI(SAPI-HSI) 35W EIR

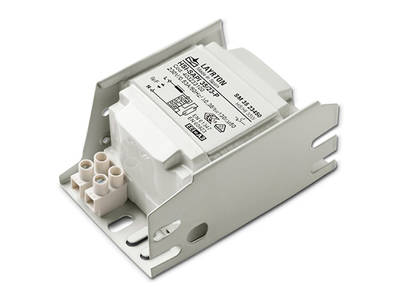

Electromagnetic ballast for high pressure sodium (HS) and metal halide (HI) lamps 35W and 0,53 A. Cross section: 66x48 mm

Built-in type. EEI=A2

Available with or without thermal protection.
Available with pulse system ignitor terminal.
Vacuum impregnated for a better thermal and noise performance, providing higher insulation level.

Based on the highest quality raw materials and fully automated production, it provides:

• Very high efficiency (EEI=A2).
• Narrow impedance tolerances, with individual current setting.
• Very high insulation level.
• Very low temperature rise Δt.
• tw130.
• High reliability with an expected lifetime over 10 years at tw=130ºC.
• ENEC, CE certification.
• Design and production in Spain.

It can be produced in a wide variety of voltages (220V, 230V, 220-240V, 230-240V, 277V, 208-220-240V...) and frequencies (50Hz, 60Hz, 50-60Hz). Customized features are available under request. Dimensions may vary.
